EZ Boat Port


New for 2012! - EZ BoatPort ™ with air-assist and side extensions

Introducing the EZ BoatPort™ with air-assist and side extensions. The new EZ BoatPort components enhance the convenience of use and boat lifting capacity to a new level. The new modular 20”platform side extensions provide added floatation and walk-around space while the new air-assist floatation tank with easy to use controls boost the boat lifting capacity to 5000lbs.

The air-assisted units offer a choice of control units that include:

  • standard AC powered pump with manual controls
  • DC battery powered pump with solar charging system with manual controls (deep cycle battery not included)
  • an AC powered remote control pump unit

In the future a DC remote controlled pump unit will be offered. All EZ BoatPort components are offered separately or by approved packages.

Other features include:

  • Drive-On System- Allows for positive contact between the boat and lift for stable porting in strong current or windy conditions
  • Bunk Options- With two adjustable bunk options the EZ BoatPort is designed for V-hull, flat bottom, or jet boats
  • Air-Assist Pump Unit- There are three air-assist pump unit options available: standard AC powered pump with manual controls; DC battery powered pump with solar charging system and manual controls (deep cycle battery not included); and an AC powered remote controlled pump unit. All pump units provide easy, hassle free operation with an approximate lift time of 30-90 seconds.
  • Patent Pending Lift Design for boats up to 5000lbs. For EZ BoatPorts without air-assist a minimum water depth of 20” is required and for EZ BoatPorts with air-assist a minimum water depth of 36” is required.
  • Versatile mounting options allow for multiple installation methods.
  • Modular System - Allows for expanding or reconfiguring your boatlift/dock by simply adding components. Can be used with standard EZ Dock, traditional floating or fixed docks.
  • Complete Platform Design - Safe and Easy to use without any open areas or exposed metal.
  • Durable - Made completely out of marine grade materials.
  • Accessibility - Side extension options offer three sided accessibility for easy access to clean or cover your watercraft.

EZ BoatPort™ Drive-On Boatlift with Air Assist and Side Extensions - Product Announcement Bulletin

For more information on the EZ BoatPort™ Drive-On Boatlift with Air-Assist and Side Extensions click here to view the Product Announcement bulletin and the BoatPort's many configurations.

Boat Port™ - EZ Dock's Newest Addition to the Port Line

Features & Benefits

  • Self-centering entry roller
  • Easy loading & unloading
  • Optional flip up cleat to secure boat to lift
  • Customizable skid bunks to fit a variety of hull shapes
  • Fully adjustable keel rollers can be added for certain hulls
  • Two replaceable rear wear plates
  • Supplemental flotation available for added bouyancy
  • Multiple T-nut locations for custom bunks/rollers

EZ Dock's new Boat Port is the perfect choice for many skiffs, runabouts, and light fishing boats. Adjustable rollers and bunks allow the Boat Port to fit a wide variety of boat shapes and sizes.

Designed like our other EZ Port products with an easy drive-on, push off method of dry docking, the Boat Port is self-floating and can move with the changing water levels. Keeping your boat high and dry, the Boat Port eliminates the need for winching, cranking, pumping or hoisting.

Boat Port™ - Product Announcement Bulletin

For more information on the Boat Port™ here to view the Product Announcement bulletin and the Boat Port's many configurations.

EZ Boat Port™ Flyer

To view the EZ Boat Port™ Flyer, a good 3 page summary, please click here.

Boat Port™ Owner's Manual

To view the Boat Port™ Owner's Manual and Installation Instructions please click here.

Boat Port™ at the Miami Boat Show



Boat Port™ at the Miami Boat Show

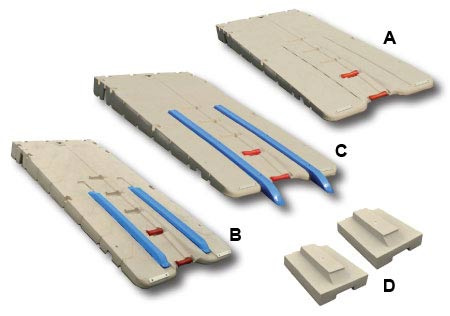

  Model Size Weight Flotation Capacity Part #
 A Boat Port 164” x 78” x 15”
4.2m x 2m x 38.1cm
550 lbs
249 kg
1800 lbs/2500lbs**
817 kg/1134 kg
208015BL
 B  Short Bunk 75” x 8” x 5”
1.9m x 20cm x 12.7cm
33 lbs
15 kg
-
-
208102
 C  Long Bunk 108” x 8” x 10”
2.7m x 20cm x 25.4cm
35 lbs
16 kg
-
-
208101
 D  Supplemental Flotation* 40” x 20” x 8” 65 lbs
29 kg
450 lbs
204 kg
208100

  • ** Theoretical flotation capacity. Actual capacity dependent upon weight distribution.
  • *  Supplemental flotation provides 450 lbs of additional flotation and comes complete with 2 flotation units and an attachment strap.

Boat Port™ Replacement Parts and Part Numbers

  Model Size Weight Flotation
Capacity
Part #
 A  EZ BoatPort 164" x 78" x 15"
4.2m x 2m x 38.1cm
550 lbs
249 kg
1800 lbs/
2000lbs**
817 kg/1134 kg
208015BL T-Connector Kit :: 204105
 B  EZ BoatPort Side Extension 164" x 20" x 15"
416.6cm x 50.8cm x 38.1cm
140 lbs
63.5 kg
500 lbs**
226.8 kg
208015EX EZ BoatPort Side Extension :: 208015EX
 C  EZ BoatPort Float Tank 111" x 80" x 20"
281.9cm x 203.2cm x 50.8cm
240 lbs
108.9 kg
2000 lbs**
907.2 kg
208015FT EZ BoatPort Float Tank :: 208015FT
 D  Supplemental Flotation 40" x 20" x 8"
101.6cm x 50.8cm x 20.3cm
65 lbs
29 kg
450 lbs
204 kg
208100 Supplemental Flotation :: 208100
 E  Long Bunk (set) 108" x 8" x 10"
2.7m x 20cm x 25.4cm
35 lbs
16 kg
  208101 Long Bunk :: 208101
 F  Short Bunk (set) 75" x 8" x 5"
1.9m x 20cm x 12.7cm
33 lbs
15 kg
  208102 Short Bunk :: 208102
 G  H-Connector Kit 15" x 13.5" x 12"
38.1cm x 34.3cm x 30.5cm
12 lbs
5.4 kg
  208104 H-Connector Kit :: 208104
 H  T-Connector Kit 7.5" x 13.5" x 12"
19.1cm x 34.3cm x 30.5cm
7 lbs
3.2 kg
  204105 T-Connector Kit :: 204105
 I  Standard Control Pump Unit 11" x 13.5" x 25.5"
27.9cm x 34.3cm x 25.5cm
30 lbs
13.6 kg
  600041 Standard Control Pump Unit :: 600041
 J  Solar Control Pump Unit 11" x 13.5" x 25..5"
27.9cm x 34.3cm x 64.8cm
30 lbs
13.6 kg
  600042 Solar Control Pump Unit :: 600042
 K  Remote Control Pump Unit 11" x 13.5" x 25.5cm
27.9cm x 34.3cm x 64.8cm
30 lbs
13.6 kg
  600043 Remote Control Pump Unit :: 600043
 L  Standard Winch Kit 9" x 7" x 20"
22.9cm x 17.8cm x 50.8cm
38 lbs
17.2 kg
  100729 Standard Winch Kit :: 100729
 M  12" Keel Roller Kit 14" x 2.5" x 2.5"
35.6cm x 6.4cm x 6.4cm
4 lbs
1.8 kg
  250050BK 12” Keel Roller Kit :: 250050BK
 N  Flip-Up Cleat Kit 8" x 6" x 1"
20.3cm x 15.2cm x 2.5cm
3 lbs
1.4 kg
  250060 Flip-Up Cleat Kit :: 250060

  • ** Theoretical flotation capacity. Actual capacity dependent upon weight distribution.
  • *  Supplemental flotation provides 450 lbs of additional flotation and comes complete with 2 flotation units and an attachment strap.
